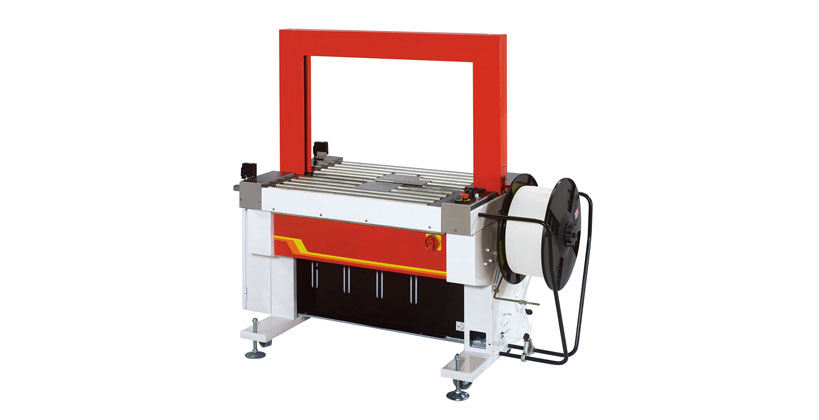

STRAPPING MACHINE

TP601A

Main Features
  • Three Phase
  • For 8 mm-12 mm P. P. strap
  • Roller-driven table
  • Multiple strap function for single, double, continuous strapping or transit mode
  • Table height: 820 mm
  • Conveyor Speed: 30 meters/minute
  • Multiple strap function for single, double, continuous strapping or transit mode
  • Up and down stream interlock with complete plug connection
  • Easy bundle flow direction change
  • Strap end ejector

Options
  • Siemens PLC control
  • Variable conveyor speed: from 18 meters/minute to 42 meters/minute
  • Safety guards
  • Foot pedal switch
  • Stainless steel frame SUS 304 (TP-601AS)
Technical Data
  • Strap Width 8 mm-12 mm
  • Strap Tension 7 kg-70 kg
  • Speed Up to 18 packages per minute (60Hz) , (Cycle speed up to 29 straps per minute)
  • Table Height 820 mm
  • Net Weight 330 kg
  • Electrical Req 220V, 380V, 400V　50/60Hz　3PH
