CASE PACKERS - SK2

SK2

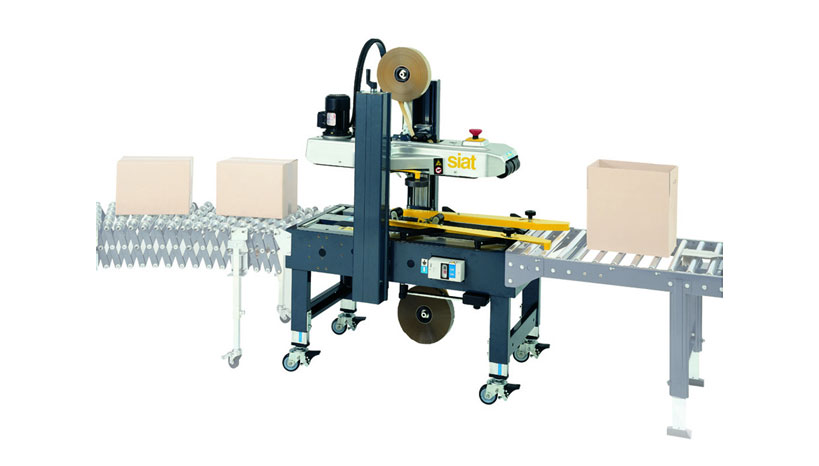

SK2 Is A Semi Automatic Carton Sealer With Manual Adjustment On The Different Box Sizes.

SK2 model is a semi-automatic “Fixed Format” case sealer: it means that all the adjustments needed to use the machine in a correct way are done manually and for this reason it is used for long runs with same box dimensions.

Key Features
  • Adjustment on width & height by handles (30” time)
  • Top & Bottom driven belts (2 x 75 mm width each)
  • Driven belts speed 20 m/min.
  • 2 x motors kW 0,13 each
  • 2 taping heads K11R - 50 mm width
  • Adjustable working height 500 – 750 mm

Box Dimensions
  • Min. L 150 mm W 140 mm H 90 mm
  • Max. L ∞ W 500 mm H 500 mm

Options
  • Casters
  • 4 wheels with clutch
  • Taping unit K12R - 75 mm width
  • RG04 – 500 mm length / RN1 - 1 m length (other on request)
  • In-feed rollers conveyors – 500 mm width
  • GTL500/3 (other on request)
  • Out-feed extendable idle conveyor from 1.5 m up to 4.5 m length – 500 mm width
