CASE ERECTOR - F144

F144

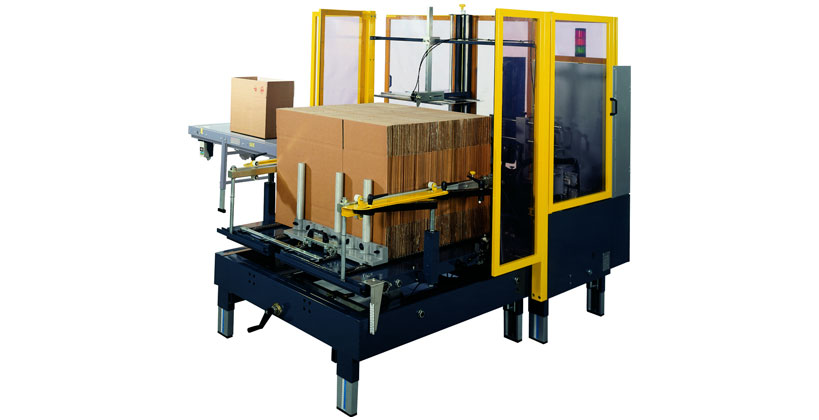

The automatic case erectors F144 is designed to form and at a later stage to seal with adhesive tape the bottom flaps of boxes, ready then to be filled, with a variable output up to 700 boxes/hour according to box dimensions. Machine adjustments are simple and fast. F144 model is easy to operate and is built in accordance with CE safety standards.

• Box storage for 150 boxes
• Box storage available on left side (SX) or right side (DX)
• Production up to 700 boxes/hour
• 2 x Carriages moved by compressed air (SMC+BOSCH) with suckers to pick cartons from box storage, square and push them in motorized driven belts (2 x motors kW 0,18 each) for the bottom flaps forming and sealing
• Taping unit K11R - 50 mm width
• VENTURI vacuum system
• Control panel equipped with: box counter - box timer, low box storage alarm, brake/end tape alarm, full line alarm after the machine
• Safety protections with switches to disconnect electric & pneumatic circuits if opened
• OMRON PLC
• F144
• Box dimensions
• Min. L 150 mm W 150 mm H 150 mm
• Max. L 450 mm W 350 mm H 450 mm

• Box storage for 300 ML boxes on request
• FESTO compressed air valves on request
• Taping unit K12R - 75 mm width on request
• Other vacuum system on request
