CASE PACKERS - SM11

SM11

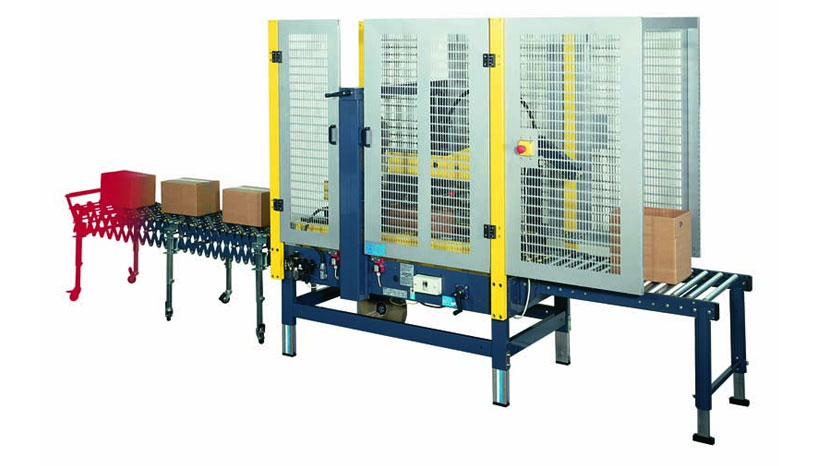

SM11 Is A Range Of Automatic Case Sealer Machines.

SM11 model is an automatic “Fixed Format” case sealer: it means that all the adjustments needed to use the machine in a correct way are done manually and for this reason it is used for long runs with same box dimensions.

The machine apply automatically two self-adhesive tape stripes on the upper and lower boxes middle line. The SM11 adjustment and use are intuitive, simple and fast.

Key Features
  • Automatic four-flaps-folder device
  • Manual adjustment on different box sizes (width, height, length) by handles. Time required 1`
  • Side driven belts (2 x 75 mm width each)
  • Driven belts speed 21 m/min
  • 2 x Motors kW 0,13 each
  • Side pressure rollers to keep top flaps one close to the other
  • Adjustable working height 500 – 750 mm.
  • 2 x Taping head K11R - 50 mm width
  • 2 x Taping head K12R - 75 mm width only for SM116 model
  • Side safety protections connected to electro-pneumatic disconnection switches

Box Dimensions
  • Min. L 200 mm W 150 mm H 100 mm
  • Max L 600 mm W 500 mm H 600 mm

Options
  • Low / brake tape device
  • Casters
  • Higher legs kit
  • Silent taping head KS11
  • Stainless steel IP54 model SM11-I
  • 2 x Taping head K12R - 75 mm width only for SM11 model
