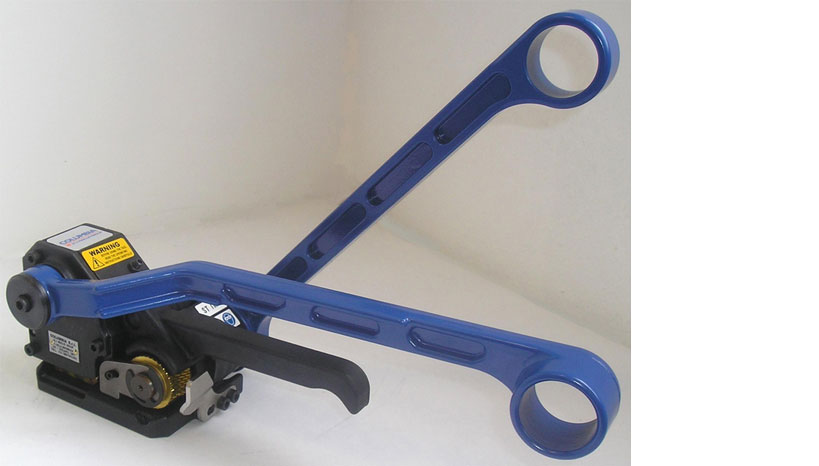

HAND STRAPPING TOOL (STEEL)

IMA HT 13/19

Manual Sealess Strapping Tool For Steel Strap.

Steel Strapping Tool User Friendly.Rugged Construction For Heavy Duty Applications.

Strap Guides Both For 16 Mm (5/8”) Standard Strap And For 13 Mm (1/2”) And 19 Mm (3/4”) Straps Are Included In The Box.

TIN (Titanium) Coating On All Wearing Parts.Steel Tensioning Lever.

Key Features
  • Package Type: Flat/Round Surface (Min. Length 150 Mm - 6” / Min. Diam. 1000 Mm - 40")
  • Joint Type: Sealless
  • Strap Quality: Standard &Amp; High Tensile. Rmax.=1100 N/Mm²
  • Strap Width: From 13 Mm (1/2”) Up To 19 Mm (3/4”)
  • Strap Thickness: Rmax=850 N/Mm². From 0,4 Mm Up To 0,8 Mm (0.015” - 0.031”)
  • Strap Thickness: Rmax=1100 N/Mm². From 0,4 Mm Up To 0,63 Mm (0.015”- 0.025”)
  • Max. Tension: Around 4600 N
  • Gear Ratio: Around 1:17
  • Weight: Around 4,6 Kgs
