CASE PACKERS - S8

S8

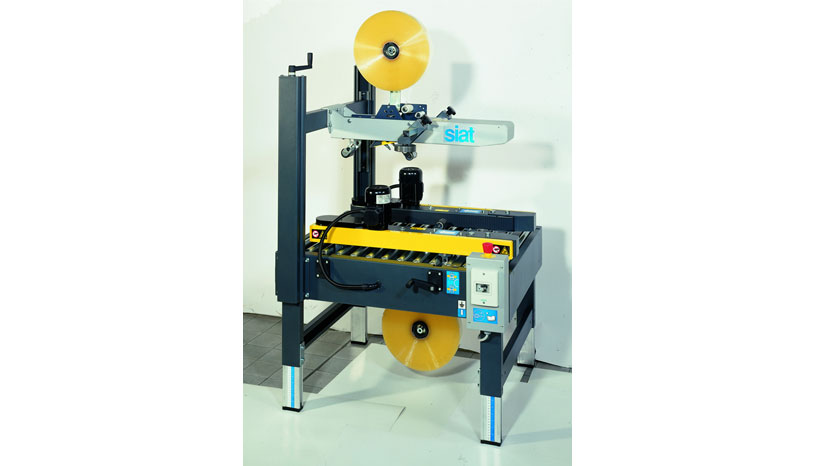

S8 Is A Semi-Automatic Case Sealer With Manual Adjustment On Different Box Sizes.

Adjustment on width & height by handles (30`` time)
Side driven belts (2 x 50 mm width each)
Driven belts speed 20 m/min – 2 Motors kW 0,09 each
2 taping heads K11R – 50 mm width (K12R – 75 mm width on request)
Adjustable working height 500 – 750 mm

Key Features
  • Semi-automatic case sealer - manual adjustment on the different box sizes
  • Box dimensions
  • Min. L 150 mm W 150 mm H 90 mm
  • Max. L ∞ W 500 mm H 500 mm

Options
  • Casters
  • 4 wheels with clutch
  • RG04 – 500 mm length / RN1 - 1 m length (other on request)
  • In-feed rollers conveyor – 500 mm width
  • GTL500/3 (other on request)
  • Out-feed extendable idle conveyor from 1.5 m up to 4.5 m length – 500 mm width
