PALLET WRAPPING MACHINE

SW2

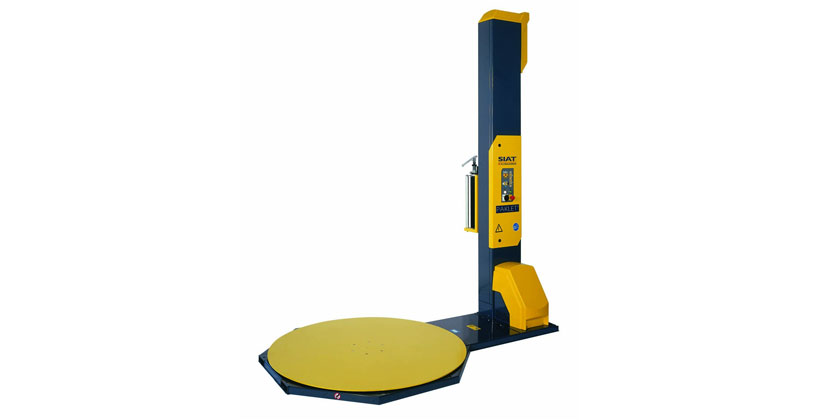

SW2 Is A Semi-Automatic Stretch Wrapper.

Professional machine for medium to high stretch film applications optimizing film usage and ensuring load securing for demanding applications.

The SW2 model is a semi-automatic machine for the palletized loads wrapping with stretch film: with the possibility of adjusting of film tension by mechanical / electromagnetic brake or mechanical / powered prestretch, gradual start of turntable, manual or automatic cycle and possibility of adjusting the film pallet over-lap.



Key Features
  • Platform diameter: 1650 / 1800 / 2200 mm
  • Max pallet height: 2100 / 2600 / 3000 mm
  • Max loading weight: 2000 Kgs
  • Different sizes as option
  • Belt driven carriage
  • Film carriage with clutch (mechanical or electromagnetic - M/FM) or prestretch (mechanical or motorized up to 300% - SM/PW)
  • Safety switch under film carriage
  • Turntable speed adjustable by Inverter/ Soft Start & Fix Stop
  • Adjustable carriage speed by Inverter
  • Control panel with advanced options and possibility to save programs
  • Gearmotor to keep the table locked during pallets loading / unloading
  • Photocell to detect pallet height
  • Hinged column to turntable frame to facilitate machine installation and mobility
  • Possibility to pitchfork the machine front and rear
  • Motorised unit for Pre-stretch
  • Automatic cutting and Pasting of the Film.
Key Features
  • Platform diameter options: 1500 mm HS (1200 Kgs max) / 1800 mm (18) / 2200 mm (22)
  • Extended columns: (M) for pallets up to 2600 mm / (H) for pallets up to 3000 mm
  • Integrated weighing system
  • Burial frame
