CONVEYORS

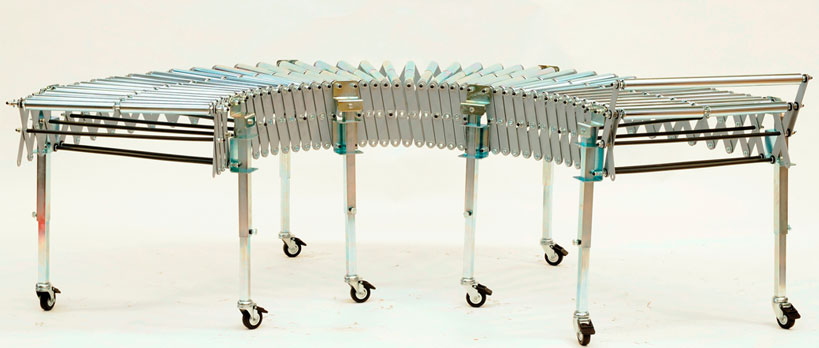

GTR500

• 4 Different Width: 400 Mm - 500 Mm - 650 Mm
• GT Basic Module: Minimum 2 Pieces
• GT Basic Length: 0,5 M Completely Closed / 1,5 M Extended
• GT/2 Length: 1 M Completely Closed / 3 M Extended
• GT/3 Length: 1,5 M Completely Closed / 4,5 M Extended
• LE Telescopic Legs With Casters For GTL / GTR
• LE - 48 Height: Min. 350 Mm / Max. 480 Mm
• LE - 78 Height: Min. 500 Mm / Max. 780 Mm
• LE - 115 Height: Min. 700 Mm / Max. 1150 Mm
• LE - 170 Height: Min. 1000 Mm / Max. 1700 Mm
• Transportation System: "L" With Plastic Wheels (Max. Weight Per Linear/Meters: 35/40 Kgs)
• Transportation System: "R" With Metal Rollers (Max. Weight Per Linear/Meters: 60 Kg
• Example Of The Most Sold Conveyor: GTL500/3
• Conveyor With Plastic Wheels / 500 Mm Width / 1,5 - 4,5 M Length
• The Working Height Must Be Specified
